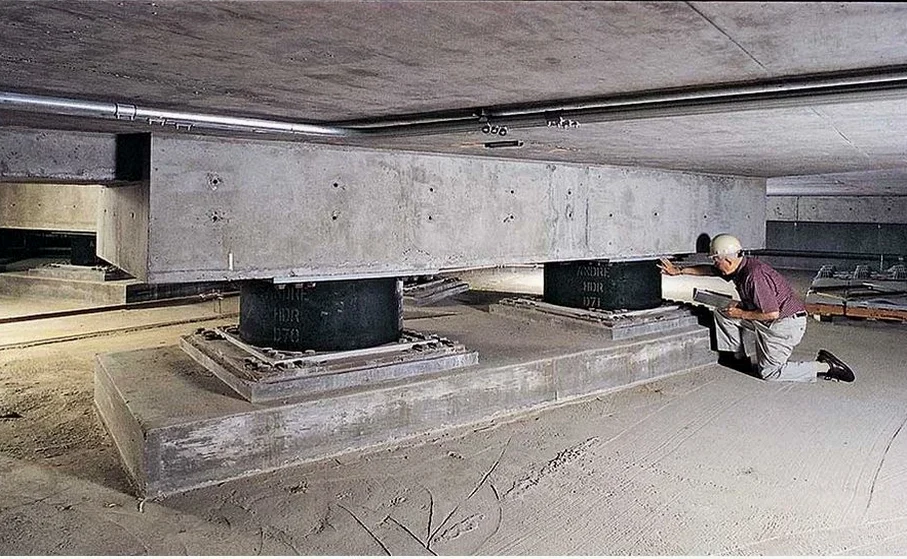

Base Isolation Seismic Design in Missoula

Missoula sits in a unique geological bowl where ancient glacial Lake Missoula once shaped the valley floor. The silty deposits and variable alluvium beneath downtown present real challenges for structural resilience. When a project demands performance beyond conventional bracing, base isolation becomes a practical strategy to decouple the structure from ground motion. Our team provides seismic isolation design rooted in the local soil profile, not generic assumptions. We analyze site-specific response spectra and coordinate with your structural engineer to specify isolator properties that match Missoula’s subsurface conditions. Early collaboration avoids costly redesign later. For deep soil characterization we often combine this with CPT testing to map soft zones that influence isolator displacement demands.

Seismic isolation in Missoula isn't about following a prescriptive checklist—it's about understanding how the valley's glacial geology amplifies motion differently than bedrock sites.

How we work

A recent mixed-use building proposed near the Clark Fork River floodplain showed exactly why generic seismic parameters fall short. The upper 20 feet consisted of loose sandy silt over dense gravels, a remnant of the Missoula floods. Using standard code spectra would have underestimated long-period displacement. We ran site-specific ground motion analysis and designed a lead-rubber bearing system tuned to the soil’s natural frequency. Key characteristics we address in every Missoula project include:

Isolator horizontal stiffness calibrated to Missoula basin amplification
Moats and utility connections that accommodate 24-inch design displacement
Wind restraint detailing for the valley’s occasional high gusts off Mount Sentinel
Uplift mitigation where shallow groundwater from the aquifer introduces buoyancy concerns

For structures with deep basements near the river, integrating excavation monitoring during construction ensures the isolation plane remains uncompromised.

Local considerations

Missoula County has recorded over 1,000 seismic events since 1980, with the Bitterroot Valley fault system capable of a magnitude 6.5 event. The combination of soft lakebed sediments and a shallow water table in the Missoula Valley creates a textbook case for amplified shaking. Conventional fixed-base construction transfers this energy directly into the structural frame, risking non-structural damage long before life safety is threatened. Base isolation reduces floor accelerations by 50 to 70 percent, protecting both the building envelope and critical interior equipment. For healthcare or emergency response facilities this operational continuity is a financial argument as much as a safety one. Owners in Missoula who overlook the basin amplification effect often face post-earthquake downtime that isolation design can prevent.

Typical values

Parameter	Typical value
Design ground motion (MCE₁)	Site-specific per ASCE 7-22 Ch. 21
Damping ratio (isolator system)	15–30% equivalent viscous damping
Target period (isolated structure)	2.5–3.5 seconds typical for Missoula basin
Displacement capacity (MCE₁)	18–30 inches depending on soil class
Soil profile consideration	Class D/E basin effects per Missoula Valley NEHRP mapping
Wind design compatibility	115 mph basic wind speed per IBC Missoula jurisdiction
Applicable standard	ASCE 7-22 Chapter 17 compliant

Related services

Site-Specific Ground Motion Analysis

Probabilistic and deterministic seismic hazard assessment tailored to Missoula’s fault sources and basin geology, producing design spectra for isolator selection.

Isolator Specification and Peer Review

Selection of elastomeric or sliding isolator properties, prototype testing protocols per ASCE 7, and independent review of manufacturer submittals.

Construction Support and Testing

On-site verification of isolator installation, moat cover detailing, and coordination of required static and dynamic testing before framing proceeds.

Questions and answers

What does base isolation design cost for a Missoula project?

For a typical Missoula mid-rise commercial or institutional project, base isolation consulting and design fees range from US$3,990 to US$7,750 depending on complexity, number of isolators, and peer review requirements. This excludes isolator hardware and testing.

How does Missoula’s soil affect isolator performance?

The valley’s glacial lake sediments amplify long-period motion. Without accounting for this, isolators can experience larger-than-expected displacements. Our analysis incorporates site-specific soil profiles to ensure the isolation system functions within its design envelope.

Can base isolation be retrofitted to existing buildings in Missoula?

Yes, though it requires careful phasing. We assess the existing foundation system, plan temporary load transfer, and detail the isolation interface. Historic masonry structures in downtown Missoula are often candidates for this approach.

What testing is required for isolators used in Missoula?

ASCE 7-22 Chapter 17 mandates prototype testing including full-scale dynamic tests at design displacement, aging and creep tests, and production tests on individual units. We manage the test program and review all reports on behalf of the owner.

How long does the base isolation design process take?

From initial feasibility through construction documents, allow 8 to 14 weeks. Site-specific ground motion analysis takes the longest upfront. We coordinate this phase to align with your structural engineer’s schematic design timeline.
